Container Shelters

PORTABLE SHELTERS BUILT TO LAST MANUFACTURED TO PROTECT YOUR ASSETS

6m Wide
Container Shelter

    • Boat Building

    • Painting & Maintenance

    • Trucks

    • RV'S

    • Horse Floats

    • Large Equipment

    • Pallet Storage

    • Hay Barns

    • Machinery

  • Dimensions:
    L6/12m W6 m x H2 m at Apex - 4.6m When Mounted on Standard ISO Containers

    Area:
    20ft - 36 m2 / 40ft - 72m2

    Frame Specs:
    44mm diameter, 2.5mm Thick Fully Galvanised Steel Frame

    Fabric Specs:
    610 gm/m2 PVC Cover - UV Stabilised/Waterproof/Flame Retardant

    Optional Extras:
    PVC End Panel - with Bracing straps

12m Wide
Container Shelter

    • Boat Building

    • Painting & Maintenance

    • Trucks

    • RV'S

    • Horse Floats

    • Large Equipment

    • Pallet Storage

    • Hay Barns

    • Machinery

  • Dimensions:
    L12 m x W12 m x H4 m - 6.6m When Mounted on Standard ISO Containers

    Area:
    144 m2

    Frame Specs:
    60mm Trussed Frame - Galvanized - 25mm truss

    Fabric Specs:
    610 gm/m2 PVC - UV Stabilized/ Waterproof/ Flame Retardant

    Optional Extras:
    Wall options:

    • Mechanical (winch system)

    • Fully Closed

    All Doors Have 60mm Galvanised Tube with PVC Cover

8m Wide
Container Shelter

    • Boat Building

    • Painting & Maintenance

    • Trucks

    • RV'S

    • Horse Floats

    • Large Equipment

    • Pallet Storage

    • Hay Barns

    • Machinery

  • Dimensions:
    L6m / 12m x W8 m x H3 m - H5.6m When Mounted on Standard ISO Containers

    Frame Specs:
    76mm Steel Tube Uprights (2mm thick), 50mm Steel Tube Horizontals (1.5mm thick), Galvanized Base Plates (5mm thick), Total Covered Area 48m2

    Fabric Specs:
    610 gm/m2 PVC - UV Stabilised/Waterproof/ Flame Retardant

    Optional Extras:
    Steel Framed End Wall with PVC cover

14m Wide
Container Shelter

    • Boat Building

    • Painting & Maintenance

    • Trucks

    • RV'S

    • Horse Floats

    • Large Equipment

    • Pallet Storage

    • Hay Barns

    • Machinery

  • Dimensions:
    L12 m x W14 m x H5m - 7.6m When Mounted on Standard ISO Containers

    Area:
    168 m2

    Frame Specs:
    60mm Trussed Frame - Galvanized - 25mm truss

    Fabric Specs:
    610 gm/m2 PVC - UV Stabilized/ Waterproof/ Flame Retardant

    Optional Extras:
    Wall options:

    • Mechanical (winch system)

    • Fully Closed

    All Doors Have 60mm Galvanised Tube with PVC Cover

COMPACT CONTAINERS

10m Wide COMPACT

    • Boat Building

    • Painting & Maintenance

    • Trucks

    • Buses

    • RV'S

    • Horse Floats

    • Large Equipment

    • Pallet Storage

    • Hay Barns

    • Machinery

  • Dimensions:
    L12 m x W10 m x H1.77m - 4.37m When Mounted on Standard ISO Containers

    Area:
    120 m2

    Frame Specs:
    76mm Diameter Steel Frame - Galvanized - 3.20mm thick

    Fabric Specs:
    610 gm/m2 PVC - UV Stabilized/ Waterproof/ Flame Retardant

    Optional Extras:
    Wall options:

    • Zipped

    • Fully Closed

    All Ends Have 76mm Galvanized Tube With PVC Cover

14m Wide COMPACT

    • Boat Building

    • Painting & Maintenance

    • Trucks

    • Buses

    • RV'S

    • Horse Floats

    • Large Equipment

    • Pallet Storage

    • Hay Barns

    • Machinery

  • Dimensions:
    L12 m x W14 m x H4.14 m - 6.74m When Mounted on Standard ISO Containers

    Area:
    168 m2

    Frame Specs:
    76mm Diameter Steel Frame - Galvanized - 3.2mm thick

    Fabric Specs:
    610 gm/m2 PVC - UV Stabilized/ Waterproof/ Flame Retardant

    Optional Extras:
    Wall options:

    • Mechanical (winch system)

    • Fully Closed

    All Ends Have 76mm Galvanized Tube With PVC Cover

12m Wide COMPACT

    • Boat Building

    • Painting & Maintenance

    • Trucks

    • Buses

    • RV'S

    • Horse Floats

    • Large Equipment

    • Pallet Storage

    • Hay Barns

    • Machinery

  • Dimensions:
    L12 m x W12 m x H2.72 m - 5.32m When Mounted on Standard ISO Containers

    Area:
    144 m2

    Frame Specs:
    76mm Diameter Steel Frame - Galvanized - 3.2mm thick

    Fabric Specs:
    610 gm/m2 PVC - UV Stabilized/ Waterproof/ Flame Retardant

    Optional Extras:
    Wall options:

    • Mechanical (winch system)

    • Fully Closed

    All Ends Have 76mm Galvanized Tube With PVC Cover

Thunderdome

10m (15m Overall) ThunderDome

    • Boat Building

    • Painting & Maintenance

    • Trucks

    • Buses

    • RV'S

    • Horse Floats

    • Large Equipment

    • Pallet Storage

    • Hay Barns

    • Machinery

  • Dimensions:
    L12m x W10m (15m Over All) x H3.5m + Height Of Containers/Setup

    Area:
    121.44 m2

    Frame Specs:
    76mm Galvanized Steel Tube - 3.5mm Thickness

    Fabric Specs:
    610 gm/m2 PVC - UV Stabilized/ Waterproof/ Flame Retardant

    Optional Extras:
    Wall options:

    • Mechanical (winch system)

    • Fully Closed

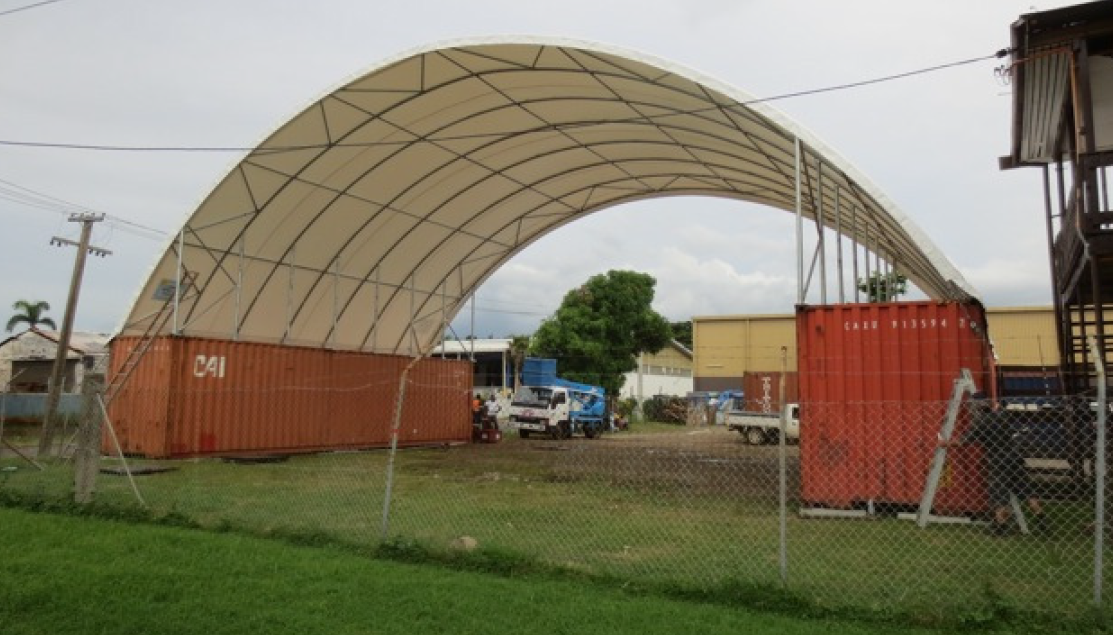

14m (19m Overall) Thunderdome

    • Boat Building

    • Painting & Maintenance

    • Trucks

    • Buses

    • RV'S

    • Horse Floats

    • Large Equipment

    • Pallet Storage

    • Hay Barns

    • Machinery

  • Dimensions:
    L12 m x W14m (19m Overall) x H5.5m + Height of Containers

    Area:
    169.4 m2

    Frame Specs:
    76mm Galvanised Steel Tube - 3.5mm wall thickness

    Fabric Specs:
    610 gm/m2 PVC - UV Stabilized/ Waterproof/ Flame Retardant

    Optional Extras:
    Wall options:

    • Mechanical (winch system)

    • Fully Closed

12m (17m Overall) Thunderdome

    • Boat Building

    • Painting & Maintenance

    • Trucks

    • Buses

    • RV'S

    • Horse Floats

    • Large Equipment

    • Pallet Storage

    • Hay Barns

    • Machinery

  • Dimensions:
    L12 m x W12m (17m Overall) x H4.05m + Height of Containers

    Area:
    145 m2

    Frame Specs:
    76mm Galvanised Steel Tube - 3.5mm wall thickness

    Fabric Specs:
    610 gm/m2 PVC - UV Stabilized/ Waterproof/ Flame Retardant

    Optional Extras:
    Wall options:

    • Mechanical (winch system)

    • Fully Closed
